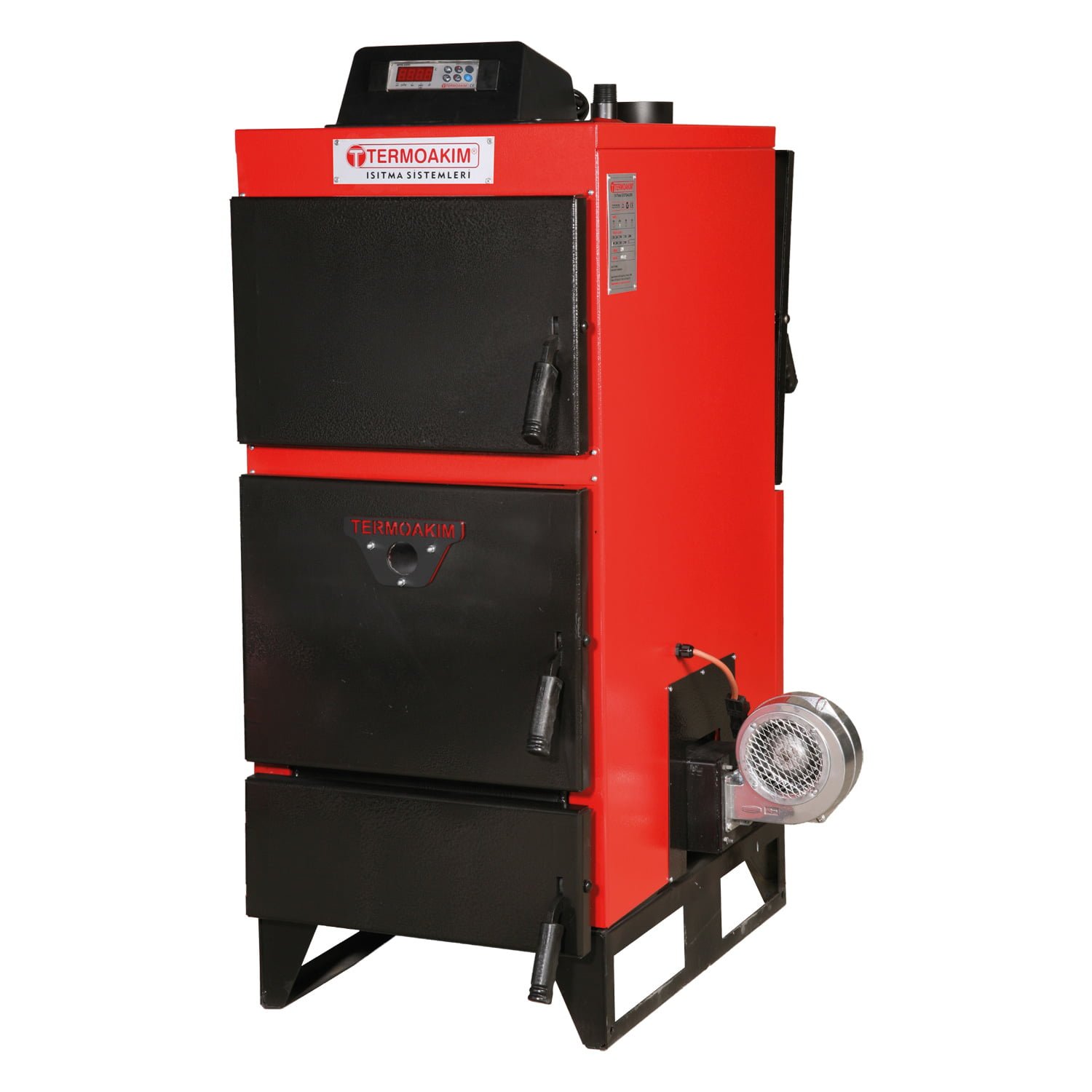

1. Cover Handles
2. Ash Cleaning Cover
3. Fuel Loading Cap
4. Smoke Pipe Cover
5. Chimney
6. Chimney Hood
7. Hood Cleaning Cover
8. Filling – Draining
9. Heater Return
10. Cast Grates
11. Smoke Pipes
12. Heater Outgoing
13. Electronic Panel
14. Expansion Exit
15. Sight glass
16. Fan
17. Ash Pan
| MODEL / SERIES | MTK-25 | MTK-40 | MTK-60 | MTK-80 | MTK-100 |
|---|---|---|---|---|---|
| Capacity (Kcal/h) | 25.000 | 40.000 | 60.000 | 80.000 | 100.000 |
| Power (Kw) | 29 | 46 | 70 | 93 | 116 |
| Electrical Connection (V/Hz) | 230 / 50 | 230 / 50 | 230 / 50 | 230 / 50 | 230 / 50 |
| Boiler Temperature Range(°C) | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 |
| Water Volume (lt) | 70 | 100 | 130 | 200 | 240 |
| Test Pressure Max. (bar) | 5 | 5 | 5 | 5 | 5 |
| Operating Pressure Max. (bar) | 3 | 3 | 3 | 3 | 3 |
| Boiler Round Trip (inch) | 1” | 1” | 1 ¼” | 1 ½” | 1 ½” |
| Expansion Exit (inch) | 1” | 1” | 1” | 1” | 1” |
| Fill Discharge (inch) | 1/2” | 1/2” | 1/2” | 1/2” | 1/2” |
| Combustion Chamber Height (mm) | 300 | 300 | 300 | 370 | 370 |
| Combustion Chamber Width (mm) | 340 | 340 | 340 | 440 | 440 |
| Combustion Chamber Depth (mm) | 575 | 675 | 825 | 880 | 880 |
| Boiler Height (a) (mm) | 1330 | 1330 | 1330 | 1600 | 1690 |
| Boiler Depth (b) (mm) | 890 | 990 | 1140 | 1350 | 1350 |
| Boiler Width (c) (mm) | 570 | 570 | 570 | 700 | 700 |
| Fan Connection Width (d) (mm) | 230 | 230 | 230 | 290 | 290 |
| Chimney Diameter (mm) | 130 | 130 | 160 | 220 | 220 |
| Boiler Weight (kg) | 255 | 295 | 340 | 545 | 580 |
