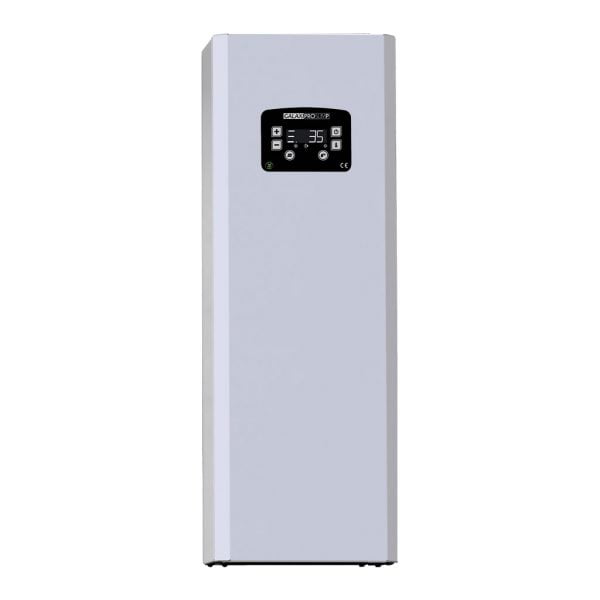

Galaxi Pro Slim P Electric Boiler

  • It offers an aesthetic appearance with its minimized dimensions and exterior design.
  • 99% efficient operation.
  • To be able to quickly enter the regime of the heating system and heat the house.
  • Circulation pump included.
  • Low pressure switch output.
  • Room thermostat output.


  • Electronic water temperature control with NTC system (sensitive temperature sensor).
  • Electronic temperature control thermostat.
  • Limit thermostat against overheating.
  • Start-up feature every 24 hours to prevent pump jamming.
  • Control panel with digital display where fault information about the device is obtained.

Details

You can view all our models on the electric combi boiler page.

Technical Table
Galaxi Pro Slim P Electric Boiler

1. Manometer

2. Heating Element (Resistance)

3. Boiler Body

4. Control Panel

5. Distribution Terminal

6. Safety Thermostat

7. Input Terminal

8. Low Pressure Sensor (Water kit)

9. Automatic Air Release

10. Circulation Pump

FeaturesPROSP-4.5PROSP-6PROSP-9PROSP-12PROSP-14
POWER (kW)4.5691214
ELECTRICAL TYPEMonophaseTrifazeMonophaseTrifazeMonophaseTrifazeMonophaseTrifazeMonophaseTrifaze
ELECTRICAL CONNECTION (V-50 Hz)230400230400230400230400230400
CAPACITY (kcal/h)3870520077401032012040
AMPER (A)2072710411455196421
RECOMMENDED FUSE (A)20103216502063208032
RECOMMENDED LEAKAGE RELAY (A)25164025632563258040
DEVICE CONNECTION CABLE (mm²)3x45x2,53x45x2,53x65x2,53x105x43x105x4
OPERATING PRESSURE (bar)2
BOILER TEMPERATURE RANGE (°C)40-75
RADIATOR TURN DIAMETER (inch) 3/4
WEIGHT (Kg)23
Assembly Diagrams
Galaxi Pro Slim P Electric Boiler

Electric boiler, radiator wiring diagram.

Galaxi Pro Slim P Electric Boiler

Electric combi underfloor heating wiring diagram.

Galaxi Pro Slim P Electric Boiler

Electric boiler, hot water boiler and radiator connection diagram.

Galaxi Pro Slim P Electric Boiler

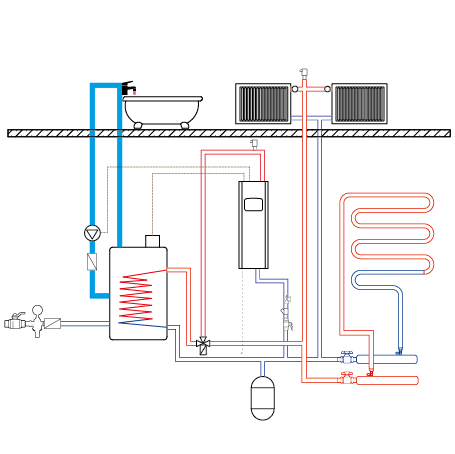

Electric boiler, hot water boiler, radiator, floor heating wiring diagram.

Galaxi Pro Slim P Electric Boiler

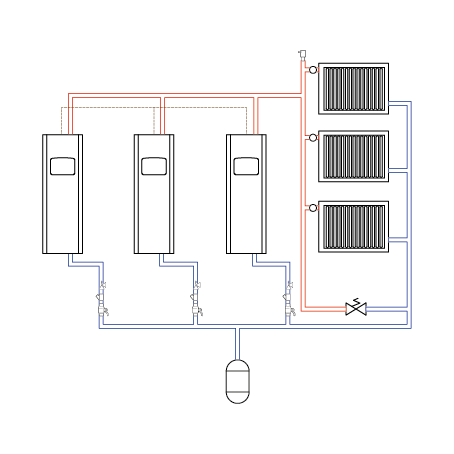

Electric boiler cascade wiring diagram.

Galaxi Pro Slim P Electric Boiler

Electric boiler, solar powered hot water boiler and radiator wiring diagram.

Galaxi Pro Slim P Electric Boiler

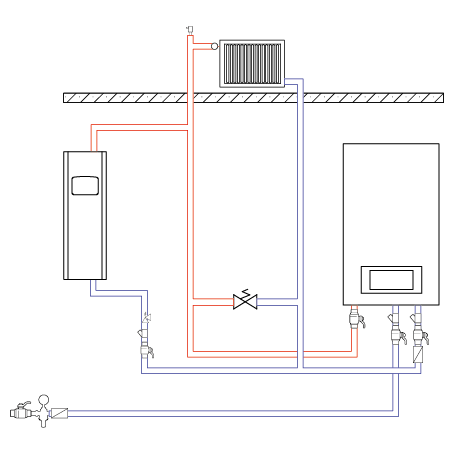

Electric boiler and gas combi boiler parallel connection diagram.

Galaxi Pro Slim P Electric Boiler

Connection diagram to electric boiler, hot water boiler, radiator, watery fireplace and similar devices.

Galaxi Pro Slim P Electric Boiler

Electric boiler and heat pump parallel connection diagram.
