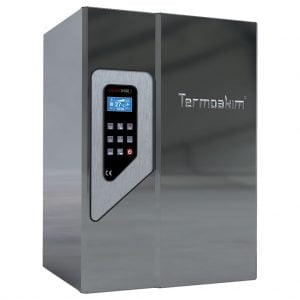

Galaxi Inox Electric Combi Boiler

  • 99% efficient operation.
  • Multifunctional graphic display.
  • Easy to use keypad.
  • On-screen diagnostics and controls.
  • Programming 5 different timers during the day.
  • Ability to determine different operating temperatures for each program.
  • 3 or 4 specially designed chrome resistors.
  • Gradual capacity selection with microprocessor providing 25% economy.
  • Circulation pump control modulation according to need, providing 7% economy.
  • Rating modulation of DHW and radiator temperature separately, saving 12%.
  • Automatic hot water usage detection modulation with 15% savings.


  • Hot water pre-treatment and intelligent sensing modulation in summer mode (DHW only), which saves 40%.
  • Specially designed chrome resistance that saves 6%.
  • Suitable for underfloor heating.
  • Room thermostat output.
  • High efficiency with specially developed mixer heat exchanger.
  • Limit thermostat against overheating.
  • Pump blockage protection.
  • Protection against freezing.
  • Automatic air vent.
  • Manual deaeration valve for quick and easy removal of air from the device.
  • Safety system against running without water.

Details

You can view all our models on the electric combi boiler page.

Parts of Electric Combi Boiler
Galaxi Inox Electric Combi Boiler

1. Air Release Valve

2. Low Pressure Sensor (Water Kit)

3. Manometer

4. Plate Heat Exchanger

5. DHW Temperature Probe

(10k NTC)

6. Three Way Valve Motor

7. Expansion Tank

8. SMPS Transformer

9. Main Relay PCB

10. Input Terminal

11. Power Distribution Board

12. Safety Thermostat

13. Boiler Body

14. Boiler Heat Probe (100k)

15. Heating Elements

16. Flow Sensor

17. Automatic Air Release

18. Circulation Pump

19. 3 Bar Safety Valve

20. Filling Valve

Technical Table
FeaturesINOX-10INOX-12INOX-18INOX-24INOX-30INOX-36INOX-40
POWER (kW)10121824303640
ELECTRICAL TYPEMonophaseMonophaseTriphaseTriphase
ELECTRICAL CONNECTION (V-50 Hz)230230400400
CAPACITY (kcal/h)8600103201548020640258003096034400
AMPER (A)4555192736455560
RECOMMENDED FUSE (A)5063253240506363
RECOMMENDED LEAKAGE RELAY (A)6363404040636363
DEVICE CONNECTION CABLE (mm²)3x63x105x45x45x65x105x105x16
OPERATING PRESSURE (bar)2
BOILER TEMPERATURE RANGE (°C)40/75
DHW TEMPERATURE RANGE (°C)40/60
HOT WATER PRODUCTION (Lt/Min) (∆T=25 °C)6711,513,5171718
RADIATOR TURN DIAMETER (inch)¾
DHW INLET OUTLET DIAMETER (inch)½
Galaxi Inox Electric Combi Boiler
Power (kW)10121824303640
Device Size axbxc (mm)645x460x385
Packaged Device Size axbxc (mm)710x520x455
Weight (kg)3334
Packaged Weight (kg)3536
Assembly Diagram
Galaxi Inox Electric Combi Boiler

Parallel connection. Hot water, radiator, underfloor heating.

Galaxi Inox Electric Combi Boiler

Standard connection. Hot water, radiator, heating.

Galaxi Inox Electric Combi Boiler

Electric combi boiler and gas combi boiler parallel wiring diagram.
